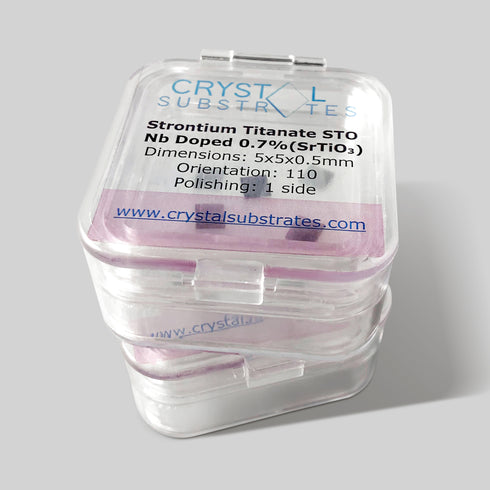

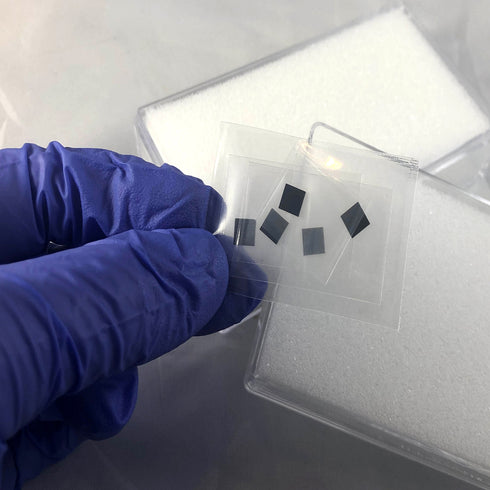

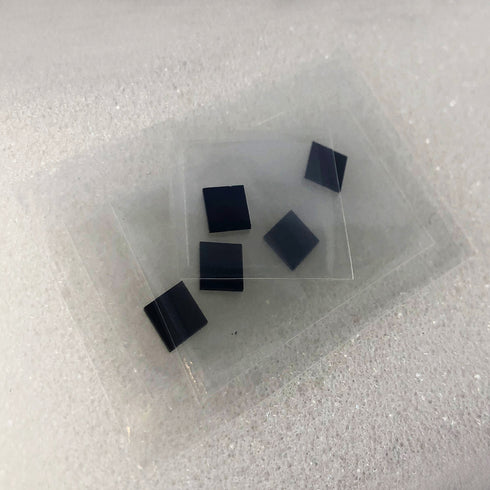

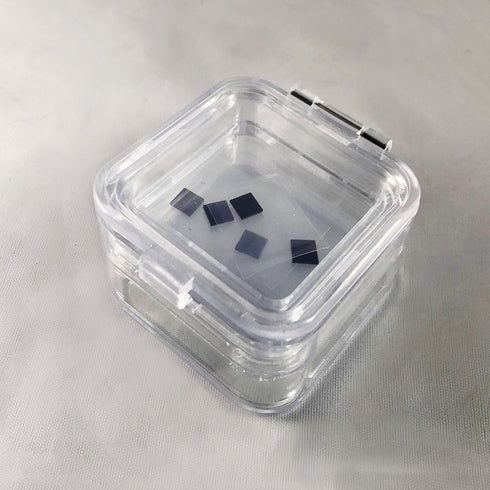

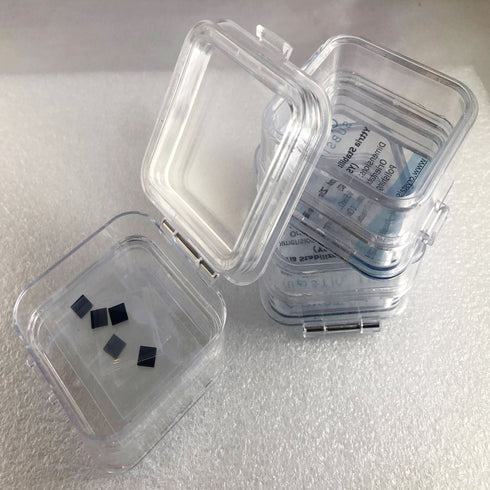

- Nb-SrTiO₃ (Niobium Doped Strontium Titanate) Single Crystal Substrate
- Custom doping concentration between 0.05-1 wt%
- Commonly used as substrate for: Perovskites e.g. LaAlO₃, YBCO, BiFeO₃, BaxSr1-xTiO₃, SrRuO₃, and many complex oxide perovskites including titanates, aluminates, ferrites, zirconates and stannates.
- <0.2 nm rms roughness (measured 5x5 µm AFM scan)
Nb-doped STO is used to grow films (often perovskites) where a electrical connection is required for the device being created or the testing of the film. We stock Nb-Concentration 0.7 wt% which gives good conductivity without shifting the lattice parameter too much therefore similar films can be grown as with SrTiO₃. We can also provide this in 0.05%, 0.1% or 0.5% and 1% if required.
Cost Considerations Nb-STO (Nb-SrTiO₃)
Due to the processing of Nb-STO it is more expensive than STO, so typically people get their growth conditions right on STO before transitioning over to Nb-STO. Or at least the films which do not require electrical connection are grown on STO.
In Nb Doped STO - Nb5+ substitutes Ti4+ in the lattice, bringing more oxide ions or more electrons into the system. In the range of 0.05-1 wt% this dramatically increases the electrical conductivity, the resistivity continues to drop with Nb content from around 0.07 ohm.cm at 0.05 wt% Nb doping to 0.004 ohm.cm at 0.7% Nb. For a full write up on SrTiO₃, please refer to the SrTiO₃ product page here.
Alternatives to Nb-SrTiO₃ (Nb-STO) Crystal Substrates
An alternative to using Nb-SrTiO₃ is depositing a thin layer of highly conducting (metal like) SrRuO₃ - this is a lattice matched material with metal like conductivity and even a 20 nm layer can be used as a good electrical connection. It has high conductivity but can lead to difficulties in making the connection to the film if subsequent layers are very thick. SrRuO₃ are readily grown by PLD at around 600C -700 C and 150 mTorr. Ruthenium makes the targets expensive to make and it is difficult to make them very dense so they last for a few years at a time. You can buy targets from www.target-materials.com
If you have any questions please contact us here.
Dr Joseph Franklin
| LINEAR FORMULA: | Nb 0.7% SrTiO3 |
| PURITY: | >99.99% |
| CRYSTAL ORIENTATION: | (100), (110) & (111) |
| GROWTH METHOD: | Vernuil |
| CRYSTAL STRUCTURE: | Cubic |
| LATTICE CONSTANT: | a=3.905 A |
| MELTING POINT (°C): | 2080 |
| THERMAL EXPANSION COEFFICIENT (/K): | 10.4 |
| HARDNESS: | 6 |
| MOLAR MASS (G/MOL): | 183.80 |
| DENSITY (G/CM3): | 5.175 |
| REFRACTIVE INDEX: | 2.3 to 2.5 in the visible spectrum. |
| DIELECTRIC CONSTANTS: | 300 at room temperature |
| CHEMICAL STABILITY: | Insoluble in water |
| SIZES: | 5x5mm & 10x10 mm |
| TYPICAL THICKNESS: | 0.5mm |
| SIZE TOLERANCES: | +/- 0.1mm |
| THICKNESS TOLERANCES: | +/- 0.015mm |
| ORIENTATION PRECISION: | +/-0.5 degree |
| POLISHING OPTIONS: | SINGLE SIDED (1SP) OR BOTH SIDES POLISHED (2SP) |
| ROUGHNESS RA: | <0.5nm |
coming soon.
How long does it take for you to ship out after purchase? In-Stock Substrates are held in our US warehouse and we aim to have substrates shipped out within 24-48 hours.
Pre-Order Substrates are manufactured and delivered in 3-4 weeks.
How much is shipping? All substrates are shipped free of charge within the USA. This shipping takes approx 4-5 days to arrive once shipped.
Expedited delivery? Faster delivery options are available. Below are some indicative prices. To get the cost for your package and location, just add your address at check out and select the shipping option you want to check.
- USA FedEx 2 day delivery: typically $25 USD
- USA FedEx Overnight Delivery: typically $65USD.
- Canada FedEx International Priority: typically $25 USD.
Europe and UK Delivery? Approx cost for delivery is 50 Euros. Shipping costs will be calculated at check-out based on your address or please complete the quote form and we will email you the price. VAT and customs charges are payable by the buyer.
Rest of Worldwide Shipping? Shipping costs to the rest of the World, will be calculated at check-out. Please be aware that delivery times and tracking information vary for each country. Customs charges may apply if shipping outside of the US and are payable by the buyer.
How can I place an order? The quickest way to get your item is to buy through the website – the order is automatically picked up in our system and in stock items ships out asap.
We can accept purchase orders for established universities and companies and are happy to work with your institutes payment systems if required (although please note we are a small company so would prefer pre-payment via our website for small or one-off orders).
We have flexible payment options and can give you a quotation in any of the following currencies (USD $, CAD $, GBP £, EUROS € AUD $).
You can download a copy of our W8 form here.
What payment options do you provide? Crystal Substrates accepts the following payment methods:
- Bank Transfer into USA bank account.
- Credit Card: Visa, MasterCard, Discover, American Express, JCB, Visa Electron.
- Crystal Substrates offers a Fast Checkout option, allowing you to securely save your credit card details so that you don't have to re-enter them for future substrate purchases.
- PayPal: Shop easily online without having to enter your credit card details on the website.Your account will be charged once the order is completed.
- Sorry we do not accept payment with check.
Do you send substrates to Europe? Yes, we have many long term customers buy from all over Europe including France, UK, Germany, Italy, Norway, Netherlands. Please buy through the website or get in touch if you need a specific substrate.
We believe we have the cheapest and best quality products in the USA. If you find another US company with a lesser price (including delivery) we would be happy to price match.
